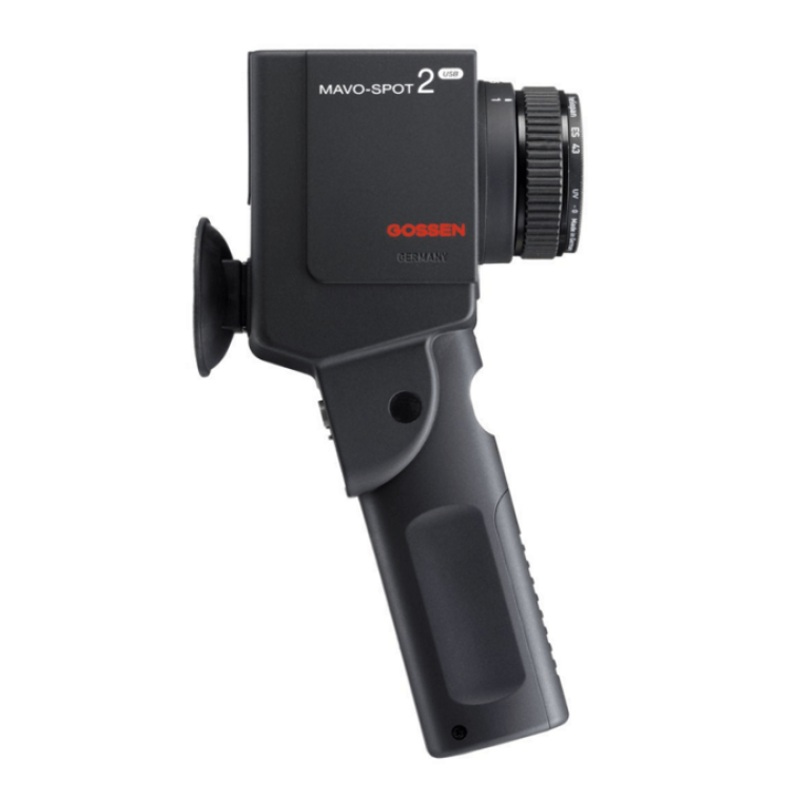

MAVO-Spot 2 USB – M508G

Features:

High precision spot-metering of the luminance with a measuring angle of 1 according to DIN 5032-7, Class B and DIN EN 13023-1, Appendix B
SLR viewfinder with measuring circle of 1 and viewing field of 15
Can measure from the distance from 1 m to infinity, with close-up lenses (optional) down to 34 cm
Contact measurement with optional Measuring Probe
Back-light display illumination with LCD read-out in the viewfinder
The silicon photo diode is color corrected, i.e. its spectral responsitivity is matched to the photopic daylight vision of the human eye V()
Remarkably easy, one hand use, with only four buttons and one sliding switch
Configuration via DIP Switches in the battery compartment
Automatic measuring range selection, total range 0.01 cd/m to 99.990 cd/m subdivided in four measuring ranges and 0.003 to 29.187 foot Lambert
Data memory for up to 1000 single measuring values, or alternatively in 10 groups
USB 2.0 Port
Tripod socket at the back

Specifications

Measuring angle: 1
Accuracy: Class B according to DIN 5032-7 in all chapters and DIN EN 13032-1, Appendix B
Optical system: Stray light error ambient light (fs (u) < 2%)
Field of view: 15 diagonal
Focusing distance: 1 m to infinity – focusing with external ring at the lens
Light sensor: Silicon photo diode with V() filter (f1 < 3%)
Luminance measuring unit: cd/m or fL (selectable with DIP switches)
Measuring ranges: Automatic measuring range selection: 0.01 cd/m to 99 990 cd/m in four ranges or 0,003 fL to 29 187 fL in four ranges
Measuring functions: Luminance in cd/m or fL (selectable, Luminance percentage, Memory MEM, Correction Factor CORR,
Measuring mode: Distance and probe measurements
USB Port: USB 2.0 (1.1 compatible)
